ACE AF1 Gold Trucks (Set of 2)
ACE Trucks Sizing:
- 22 - 7.75" axle
- 33 - 8.0" axle
- 44 - 8.25" axle
- 55 - 8.5" inch axle
- 60 - 8.75" axle
- 66 - 9.0" axle
- 77 - 9.5" axle

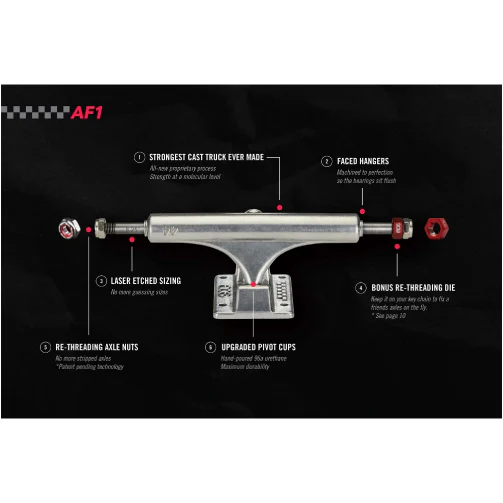

DETAILS
- Sold as a set of 2
- Hanger width: 5.6” (143mm)
- Truck height: 2.1” (53mm)
- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response.
- Refined suspension for a cleaner turn.
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact.
The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
